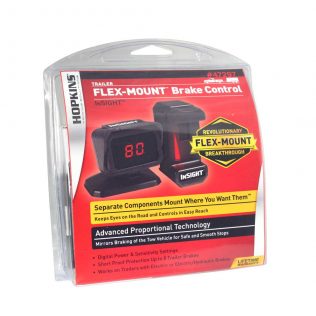

In-Sight™ Brake Control

In-Sight™ Brake Control

In-Sight™ Brake Control Providing the Ultimate Braking Experience!

Designed for today’s vehicles, the InSIGHT™ brake control with Flex-Mount™ versatility solves the problem of inconvenient mounting while increasing user safety and convenience. This is achieved by bringing the display within the driver’s line of sight and the controls within easy reach…all with no tools required and Plug-In Simple® installation.

  • For Electric or Electric/Hydraulic Trailer Brakes
  • Short proof protection for up to 8 Trailer Brakes
  • Uses Proportional/Progressive Braking System
  • Flex-Mount™ Versatility — Perfect for today’s vehicles
  • No Tools Required Installation, no drilling required — Plug-In Simple!® components
  • Increased User Satisfaction — Brings total control within easy reach
  • Advanced Proportional Technology — Mirrors braking action of the towed vehicle for safe, smooth stops
  • Digital LED Display — Intuitive 0-99 scale of power setting
  • 7 Sensitivity Settings for Advanced Braking Control
  • Short Proof Protection for up to 8 Trailer Brakes
  • Electric or Electric/Hydraulic Trailer Brake Compatibility
  • Flex-Control™ features a soft glowing light for easy location at night
  • Lifetime Warranty

$149.00

Availability: In stock

Hopkins

In-Sight™ Brake Control

Tech Specs

  • Can be used on Trailers with 2, 4, 6 or 8 Trailer Brakes
  • Can be used with Electric brakes
  • Can be used with Electric/Hydraulic brakes
  • Has Brake Failure Notification
Weight 1 kg
Dimensions 20 × 20 × 10 cm

PROPORTIONAL BRAKE CONTROLS ARE LEGALLY REQUIRED IN ALL AUSTRALIAN STATES FOR ANY TRAILERS OVER 4.5 TONNE.

AUSTRALIAN DESIGN RULES & STATE LAWS FOR TRAILERS

Vehicle Standards 2013
Australian Design Rule 38/04 – Trailer Brake Systems

This requirement started from 1st January 2015 for all vehicle models, whether new or existing.In summary, the function of this vehicle standard is to specify requirements to ensure safe braking of trailers under both normal and emergency conditions.

The ADR for trailer brake systems was implemented to improve Australia’s Road Safety Performance.

To view the ADR online, visit this link to the Federal Register of Legislation.

Common facts about towing with trailers

    • Trailers with a GTM* over 2000kg MUST have a Brake Control installed which can be operated from inside the vehicle by the driver.
      See our applicable Brake Control Kits.
    • In NSW, Trailers with a GTM* over 2000kg with an Emergency Brake System fitted, MUST also have a battery monitor for the Emergency Brake System fitted.
      ‘Engager’ Break-Away Battery Monitor – Part No. 20096

Vehicle Category Codes:

CATEGORY CODE BRAKE CONTROL REQUIRED RECOMMENDED

TA (O1) – VERY LIGHT TRAILER

A single-axle trailer with a GTM* not exceeding 750kg.

NO Not Required

TB (O2) – LIGHT TRAILER

A trailer with a GTM* not exceeding 3500kg, other than a trailer of Category TA.

YES Brake Control RECOMMENDED: Time Based Braking System

Impulse Brake Control – Part No. 47235
Reliance Brake Control – Part No. 47285
Brake-Force Brake Control – Part No. 47225

TC (O3) – MEDIUM TRAILER

A trailer with a GTM* exceeding 3500kg, but not exceeding 10,000kg.

YES Brake Control RECOMMENDED: Proportional Braking System

InSight Brake ControlPart No. 47297
Agility Brake Control – Part No. 47294

TD (O4) – HEAVY TRAILER

A trailer with a GTM* exceeding 10,000kg.

YES Brake Control RECOMMENDED: Proportional Braking System

InSight Brake ControlPart No. 47297
Agility Brake Control – Part No. 47294

*GTM (Gross Trailer Mass) is the mass transmitted to the ground by the tyres of the trailer when coupled to a towing vehicle and carrying the maximum load recommended by the manufacturer or importer, approximately uniformly distributed over the load bearing area.



Time Based vs Proportional Brake Controls Explained



InSight Installation Instructions

Editorial by AAAA Magazine

Hopkins Towing Range Brochure
